Overview

Webhooks allow your applications to receive real-time notifications when specific events occur in SubVerse AI, such as call completions, workflow executions, or agent interactions. This enables you to build responsive integrations and automate workflows based on SubVerse events.

How Webhooks Work

When an event occurs in SubVerse AI (like a call completing or workflow finishing), we send an HTTP POST request to your configured webhook URL with relevant event data. This enables you to:

Track call outcomes and analytics in your systems
Trigger downstream processes automatically
Update your CRM or database in real-time
Send notifications to your team
Integrate with third-party tools

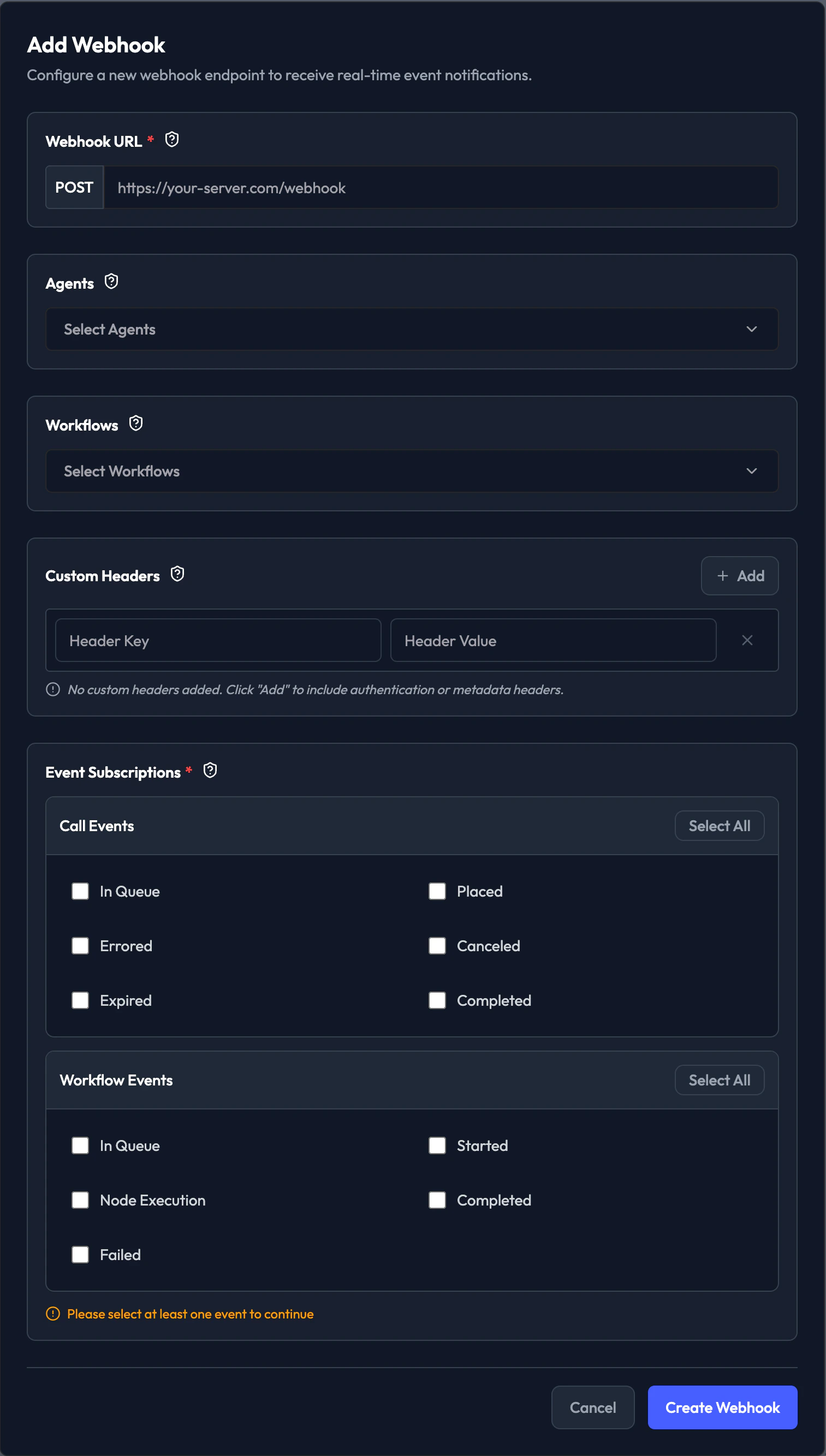

Creating a Webhook

Step 1: Navigate to Webhooks

Log in to your SubVerse dashboard
Go to Integrations → Webhooks
Click + Add Webhook

Step 2: Configure Webhook URL

Webhook URL

Enter your endpoint URL that will receive webhook events
Must be a publicly accessible HTTPS URL
Format: https://your-server.com/webhook

Example URLs:

https://api.yourcompany.com/subverse/webhook
https://your-app.com/api/v1/webhooks/subverse
https://hooks.zapier.com/hooks/catch/123456/abcdef

Your webhook URL must be publicly accessible and use HTTPS. Local development URLs (localhost, 127.0.0.1) will not work in production.

Step 3: Select Agents (Optional)

Choose specific agents whose events you want to receive:

Select All: Receive events from all agents
Specific Agents: Select individual agents from the dropdown

Use Cases:

Monitor specific high-priority agents
Route different agents to different endpoints
Filter events by agent type

Step 4: Select Workflows (Optional)

Choose specific workflows whose events you want to receive:

Select All: Receive events from all workflows
Specific Workflows: Select individual workflows from the dropdown

Use Cases:

Track specific campaign workflows
Monitor critical business processes
Separate workflow events by type

Step 5: Configure Custom Headers (Optional)

Add custom HTTP headers to webhook requests for authentication or metadata: Common Use Cases:

Authentication: Authorization: Bearer your-token-here
API Keys: X-API-Key: your-api-key
Custom Metadata: X-Client-ID: your-client-id

To Add Headers:

Click + Add in the Custom Headers section
Enter Header Key (e.g., Authorization)
Enter Header Value (e.g., Bearer abc123xyz)
Add multiple headers as needed

Select which events you want to receive notifications for:

Call Events

In Queue: Call is waiting to be processed
Placed: Outbound call has been initiated
Errored: Call encountered an error
Canceled: Call was canceled before completion
Expired: Call expired (timeout)
Completed: Call finished successfully

Workflow Events

In Queue: Workflow is waiting to execute
Started: Workflow execution has begun
Node Execution: Individual workflow node executed
Failed: Workflow execution failed
Completed: Workflow finished successfully

Selection Tips:

Click Select All to subscribe to all events in a category
Select individual events for specific use cases
You must select at least one event to create the webhook

Step 7: Create Webhook

Review your configuration
Click Create Webhook

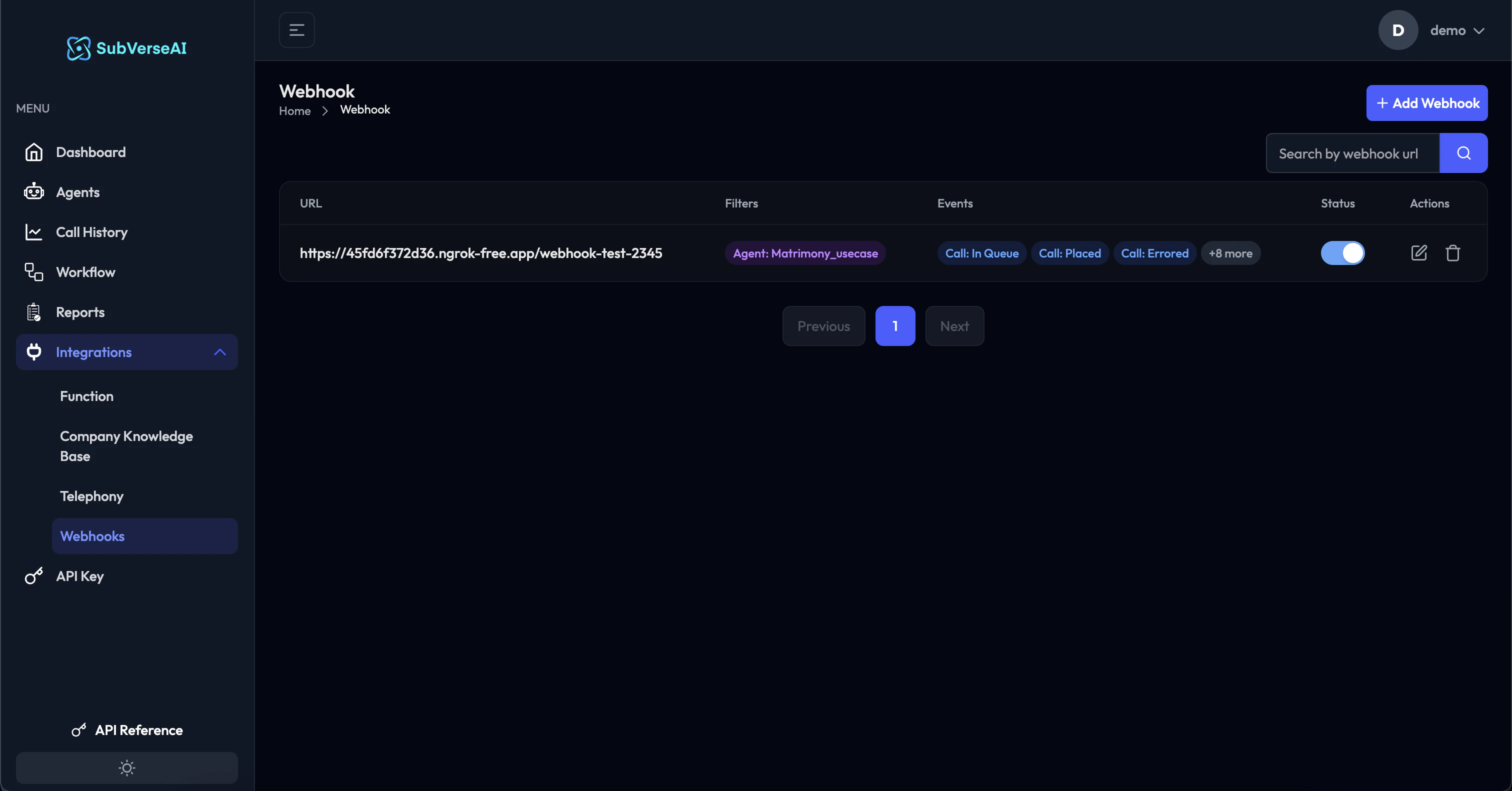

Your webhook will appear in the webhooks dashboard
Toggle the switch to enable/disable the webhook

Event Payload Structure

SubVerse sends webhook events as HTTP POST requests with JSON payloads.

Call Events Payload

{
  "eventType": "call.placed",
  "createdAt": "2025-12-08T10:30:00Z",
  "data": {
    "callId": "call_xyz789",
    "customerNumber": "+91xxxxxxxxxx",
    "callStatus": "call_placed",
    "botNumber": "+91xxxxxxxxxx",
    "agentId": "agent_123",
    "agentName": "Customer Support Agent",
    "callDuration": 185,
    "callDirection": "outbound",
    "callTime": "2025-12-08T10:27:00Z",
    "transcript": "Full conversation transcript...",
    "analysis": {
      "sentiment": "positive",
      "summary": "Customer inquiry resolved successfully",
      "customFields": {}
    },
    "recordingUrl": "https://recordings.subverseai.com/call_xyz789.mp3"
  }
}

Workflow Events Payload

{
  "eventType": "workflow.in_queue",
  "createdAt": "2025-12-08T10:35:00Z",
  "data": {
    "workflowId": "wf_456",
    "workflowName": "Order Confirmation Campaign",
    "executionId": "exec_789",
    "status": "in_queue",
    "startedAt": "2025-12-08T10:30:00Z",
    "completedAt": "2025-12-08T10:35:00Z",
    "duration": 300,
    "nodesExecuted": 5,
    "results": {
      "callsMade": 10,
      "emailsSent": 10,
      "successRate": 0.9
    }
  }
}

Common Fields

All webhook payloads include:

eventType: Type of event (e.g., call.completed, call.placed, workflow.started, workflow.in_queue)
createdAt: ISO 8601 timestamp when event occurred
data: Event-specific data payload with camelCase field names

Webhook Endpoint Requirements

Your webhook endpoint must meet the following requirements:

1. Accept POST Requests

app.post('/webhook', (req, res) => {
  // Handle webhook
});

2. Parse JSON Body

app.use(express.json());

3. Return 2xx Status Code

res.status(200).json({ received: true });

4. Respond Quickly

Return response within 5 seconds
Process heavy operations asynchronously
Use background jobs for time-consuming tasks

Example Webhook Endpoint

Node.js/Express

const express = require('express');
const app = express();

app.use(express.json());

app.post('/subverse/webhook', async (req, res) => {
  const { eventType, createdAt, data } = req.body;

  // Acknowledge receipt immediately
  res.status(200).json({
    received: true,
    eventType: eventType
  });

  // Process asynchronously
  processWebhookAsync(eventType, data);
});

async function processWebhookAsync(eventType, data) {
  try {
    switch(eventType) {
      case 'call.completed':
      case 'call.placed':
        await updateCRM(data);
        await sendNotification(data);
        break;
      case 'workflow.completed':
      case 'workflow.in_queue':
        await logWorkflowResults(data);
        break;
      default:
        console.log('Unknown event type:', eventType);
    }
  } catch (error) {
    console.error('Error processing webhook:', error);
  }
}

app.listen(3000);

Python/Flask

from flask import Flask, request, jsonify
import threading

app = Flask(__name__)

@app.route('/subverse/webhook', methods=['POST'])
def webhook():
    data = request.json
    event_type = data.get('eventType')
    created_at = data.get('createdAt')

    # Acknowledge receipt immediately
    response = jsonify({'received': True, 'eventType': event_type})

    # Process asynchronously
    thread = threading.Thread(
        target=process_webhook_async,
        args=(event_type, data.get('data'))
    )
    thread.start()

    return response, 200

def process_webhook_async(event_type, data):
    try:
        if event_type in ['call.completed', 'call.placed']:
            update_crm(data)
            send_notification(data)
        elif event_type in ['workflow.completed', 'workflow.in_queue']:
            log_workflow_results(data)
    except Exception as e:
        print(f'Error processing webhook: {e}')

if __name__ == '__main__':
    app.run(port=3000)

Security Best Practices

1. Use HTTPS

Always use HTTPS endpoints to encrypt data in transit.

2. Validate Requests

Verify requests are coming from SubVerse:

Check custom headers you configured
Validate event structure
Implement request signing (if available)

3. Implement Idempotency

Handle duplicate events gracefully:

const processedEvents = new Set();

app.post('/webhook', (req, res) => {
  const { eventType, createdAt, data } = req.body;

  // Use callId or workflowId + createdAt as unique identifier
  const eventId = data.callId || data.workflowId + '_' + createdAt;

  if (processedEvents.has(eventId)) {
    return res.status(200).json({ received: true, duplicate: true });
  }

  processedEvents.add(eventId);
  // Process event...
});

4. Rate Limiting

Protect your endpoint from abuse:

const rateLimit = require('express-rate-limit');

const limiter = rateLimit({
  windowMs: 1 * 60 * 1000, // 1 minute
  max: 100 // limit each IP to 100 requests per minute
});

app.post('/webhook', limiter, (req, res) => {
  // Handle webhook
});

Managing Webhooks

Enable/Disable Webhooks

Toggle the switch in the webhooks dashboard to enable or disable a webhook without deleting it.

Edit Webhooks

Click the edit icon next to the webhook
Modify URL, agents, workflows, headers, or events
Click Update Webhook

Delete Webhooks

Click the delete icon next to the webhook
Confirm deletion
Webhook will stop receiving events immediately

Test Webhooks

Send a test event to verify your endpoint:

Click the test icon next to the webhook
Select an event type to test
Check your endpoint receives the test payload

Monitoring Webhooks

Webhook Logs

View webhook delivery status and responses:

Click on a webhook in the dashboard
View recent deliveries
Check success/failure status
Review response codes and error messages

Retry Logic

SubVerse automatically retries failed webhook deliveries:

Attempts: Up to 3 retries
Backoff: Exponential backoff (1s, 5s, 25s)
Status Codes: Retries on 5xx errors and timeouts
Success: 2xx status codes mark delivery as successful

Common Use Cases

1. CRM Integration

Update customer records when calls complete:

async function updateCRM(callData) {
  await crmClient.contacts.update({
    phone: callData.customerNumber,
    lastCallDate: callData.callTime,
    callDuration: callData.callDuration,
    callNotes: callData.transcript,
    sentiment: callData.analysis?.sentiment
  });
}

2. Team Notifications

Send Slack notifications for important events:

async function sendSlackNotification(callData) {
  if (callData.analysis?.sentiment === 'negative') {
    await slackClient.chat.postMessage({
      channel: '#customer-support',
      text: `⚠️ Negative call detected with ${callData.customerNumber}`,
      attachments: [{
        text: callData.analysis.summary
      }]
    });
  }
}

3. Analytics Tracking

Send events to analytics platforms:

async function trackAnalytics(callData) {
  await analyticsClient.track({
    event: 'Call Completed',
    properties: {
      agentId: callData.agentId,
      duration: callData.callDuration,
      status: callData.callStatus,
      sentiment: callData.analysis?.sentiment
    }
  });
}

4. Workflow Automation

Trigger follow-up actions based on call outcomes:

async function automateFollowup(callData) {
  if (callData.callStatus === 'completed') {
    // Send follow-up email
    await sendEmail({
      to: callData.analysis?.customFields?.email,
      subject: 'Thank you for your call',
      body: generateFollowupEmail(callData)
    });
  } else {
    // Schedule retry call
    await scheduleCallback({
      customerNumber: callData.customerNumber,
      scheduledTime: addHours(new Date(), 2)
    });
  }
}

Troubleshooting

Webhook Not Receiving Events

Check:

Webhook is enabled (toggle switch is on)
URL is publicly accessible
Correct events are selected
Agents/workflows are selected (if filtered)

Solution:

Test URL accessibility from external service
Verify firewall rules allow incoming requests
Check webhook logs for delivery attempts
Ensure endpoint returns 2xx status code

Timeout Errors

Check:

Endpoint response time
Heavy processing in request handler
Database query performance

Solution:

Return 200 response immediately
Move processing to background jobs
Use async/await properly
Optimize database queries

Duplicate Events

Check:

Retry logic triggering multiple deliveries
Idempotency handling in your code

Solution:

Implement event ID tracking
Use database constraints for uniqueness
Return 200 even for duplicates

Next Steps

Webhook Node

Use webhooks in workflows

API Reference

Webhook API documentation

Call History

Monitor call events

Workflow Getting Started

Build automated workflows

Start with a simple webhook that logs events, then gradually add more complex processing logic as you become familiar with the event structure.

Overview

Integration Types

​Overview

​How Webhooks Work

​Creating a Webhook

​Step 1: Navigate to Webhooks

​Step 2: Configure Webhook URL

​Step 3: Select Agents (Optional)

​Step 4: Select Workflows (Optional)

​Step 5: Configure Custom Headers (Optional)

​Step 6: Subscribe to Events

​Call Events

​Workflow Events

​Step 7: Create Webhook

​Event Payload Structure

​Call Events Payload

​Workflow Events Payload

​Common Fields

​Webhook Endpoint Requirements

​1. Accept POST Requests

​2. Parse JSON Body

​3. Return 2xx Status Code

​4. Respond Quickly

​Example Webhook Endpoint

​Node.js/Express

​Python/Flask

​Security Best Practices

​1. Use HTTPS

​2. Validate Requests

​3. Implement Idempotency

​4. Rate Limiting

​Managing Webhooks

​Enable/Disable Webhooks

​Edit Webhooks

​Delete Webhooks

​Test Webhooks

​Monitoring Webhooks

​Webhook Logs

​Retry Logic

​Common Use Cases

​1. CRM Integration

​2. Team Notifications

​3. Analytics Tracking

​4. Workflow Automation

​Troubleshooting

​Webhook Not Receiving Events

​Timeout Errors

​Duplicate Events

​Next Steps

Webhook Node

API Reference

Call History

Workflow Getting Started

Overview

How Webhooks Work

Creating a Webhook

Step 1: Navigate to Webhooks

Step 2: Configure Webhook URL

Step 3: Select Agents (Optional)

Step 4: Select Workflows (Optional)

Step 5: Configure Custom Headers (Optional)

Step 6: Subscribe to Events

Call Events

Workflow Events

Step 7: Create Webhook

Event Payload Structure

Call Events Payload

Workflow Events Payload

Common Fields

Webhook Endpoint Requirements

1. Accept POST Requests

2. Parse JSON Body

3. Return 2xx Status Code

4. Respond Quickly

Example Webhook Endpoint

Node.js/Express

Python/Flask

Security Best Practices

1. Use HTTPS

2. Validate Requests

3. Implement Idempotency

4. Rate Limiting

Managing Webhooks

Enable/Disable Webhooks

Edit Webhooks

Delete Webhooks

Test Webhooks

Monitoring Webhooks

Webhook Logs

Retry Logic

Common Use Cases

1. CRM Integration

2. Team Notifications

3. Analytics Tracking

4. Workflow Automation

Troubleshooting

Webhook Not Receiving Events

Timeout Errors

Duplicate Events

Next Steps
