Overview

The Webhook Node sends events and data to client-side applications via HTTP POST requests. This enables your workflows to integrate with external systems, CRMs, databases, and custom applications.

Use Cases

CRM Integration: Update customer records in Salesforce, HubSpot, etc.
Database Updates: Send data to your database
Ticket Systems: Create tickets in Jira, Zendesk, Freshdesk
Analytics: Send events to analytics platforms
Notifications: Trigger alerts in Slack, Microsoft Teams
Custom Applications: Integrate with your proprietary systems
Data Pipelines: Feed data into ETL processes
Third-Party APIs: Call any external API

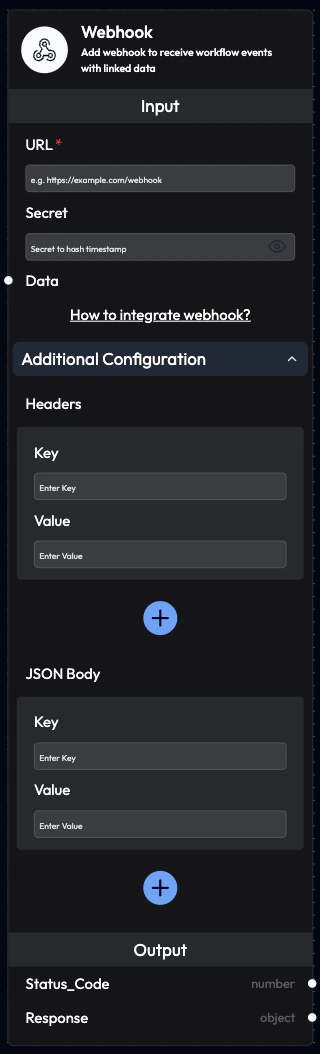

Inputs

URL (Required)

Webhook URL to send the events to. Format: https://your-domain.com/webhook-endpoint Requirements:

Must be HTTPS (HTTP not recommended for production)
Must be publicly accessible
Should accept POST requests
Should return appropriate HTTP status codes

Examples:

https://api.yourcompany.com/subverse/webhook
https://hooks.zapier.com/hooks/catch/123456/abcdef
https://your-crm.com/api/v1/leads

Secret

Optional secret key for webhook authentication. Purpose:

Generate HMAC SHA256 hash for request validation
Secure webhook endpoint from unauthorized requests
Recommended for production environments

Usage:

Enter a strong secret string
Use same secret on your server to validate requests
Hash will be included in webhook payload

Data (Required)

Data or events to send through webhook. Configuration:

Can be manually entered JSON
Can link outputs from previous blocks
Supports multiple data sources
Automatically formatted as JSON

Example Manual Data:

{
  "event_type": "call_completed",
  "customer_name": "John Doe",
  "call_duration": 125
}

Example Linked Data: Link outputs from previous blocks:

Call_Status from Voice Agent Node
Transcript from Incoming Call Node
LLM_Response from AI Query Agent
Email_success from Send Email Node

Additional Configuration

Headers Custom HTTP headers to include in the request. Configuration:

Add key-value pairs for headers
Common uses: Authentication, Content-Type overrides
Example: Authorization: Bearer token123

JSON Body Structure the request body with custom JSON format. Configuration:

Define custom JSON structure
Map workflow data to specific JSON keys
Useful for APIs with specific payload requirements

Outputs

Status_Code

HTTP status code returned by the webhook endpoint. Values:

200-299: Success responses
400-499: Client error responses
500-599: Server error responses

Usage:

Check specific response codes
Implement conditional logic based on status
Debug webhook issues

Response

Response body returned by the webhook endpoint. Type: Object Contains:

Data returned by your endpoint
Error messages (if any)
Confirmation details

Usage:

Extract data from response
Log response for debugging
Use response data in subsequent blocks

Webhook Payload Structure

SubVerse sends the following payload to your webhook URL:

POST /your-webhook-endpoint
Content-Type: application/json

{
  "data": {
    // Your custom data - all connected block outputs
    "call_status": "connected",
    "customer_number": "+91xxxxxxxxxx",
    "transcript": "...",
    "call_duration": 125
  },
  "timestamp": 1713784015226,  // Unix timestamp in milliseconds
  "hash": "generated_hash"      // SHA256 or HMAC SHA256 hash
}

Payload Fields

data

Contains all the data you configured in the node
Includes linked outputs from previous blocks
Formatted as JSON object

timestamp

Current Unix timestamp in milliseconds
When the webhook was sent
Use for chronological ordering and replay protection

hash

Authentication hash for request validation
SHA256 or HMAC SHA256 (if secret provided)
Verify to ensure request authenticity

Client-Side Setup

Webhook Endpoint Requirements

Your webhook endpoint must:

Accept POST Requests: Only POST method is used
Parse JSON: Accept application/json content type
Respond with JSON: Use Content-Type: application/json
Return Status Codes: Use proper HTTP status codes
- 200-299: Success
- 400-499: Client error
- 500-599: Server error

Example Endpoint (Node.js/Express)

const express = require('express');
const app = express();

app.use(express.json());

app.post('/subverse/webhook', (req, res) => {
  const { data, timestamp, hash } = req.body;

  // Validate timestamp (within 10 minutes)
  if (!isTimestampValid(timestamp)) {
    return res.status(400).json({ error: 'Invalid timestamp' });
  }

  // Validate hash (if using secret)
  if (!validateHash(timestamp, hash, YOUR_SECRET)) {
    return res.status(401).json({ error: 'Invalid signature' });
  }

  // Process the data
  console.log('Received webhook data:', data);

  // Your business logic here
  processCallData(data);

  // Respond with success
  res.status(200).json({
    success: true,
    message: 'Webhook received successfully'
  });
});

function isTimestampValid(timestamp) {
  const now = Date.now();
  const tenMinutes = 10 * 60 * 1000;
  return Math.abs(now - timestamp) <= tenMinutes;
}

app.listen(3000, () => {
  console.log('Webhook server running on port 3000');
});

Security and Validation

Timestamp Validation

Protect against replay attacks by validating the timestamp:

function isTimestampValid(timestamp) {
  const now = Date.now();
  const tenMinutes = 10 * 60 * 1000; // 600,000 ms
  return Math.abs(now - timestamp) <= tenMinutes;
}

Best Practice: Reject requests older than 10 minutes

Hash Validation (Without Secret)

When no secret is provided, a SHA256 hash is generated:

const crypto = require('crypto');

function validateHash(timestamp, receivedHash) {
  const expectedHash = crypto
    .createHash('sha256')
    .update(String(timestamp))
    .digest('hex');

  return expectedHash === receivedHash;
}

Hash Validation (With Secret)

When a secret is provided, an HMAC SHA256 hash is generated:

const crypto = require('crypto');

function validateWithSecret(timestamp, receivedHash, secret) {
  const expectedHash = crypto
    .createHmac('sha256', secret)
    .update(String(timestamp))
    .digest('hex');

  return expectedHash === receivedHash;
}

Recommended: Always use a secret for production environments

Configuration Examples

Example 1: CRM Update

URL: https://api.yourcrm.com/leads
Data: {
  "customer_name": [Link from Customer_Details.name],
  "phone": [Link from Customer_Number],
  "call_status": [Link from Call_Status],
  "transcript": [Link from Transcript],
  "lead_score": [Link from AI Query Agent output]
}

Example 2: Slack Notification

URL: https://hooks.slack.com/services/YOUR/WEBHOOK/URL
Data: {
  "text": "New high-priority call completed",
  "blocks": [
    {
      "type": "section",
      "text": {
        "type": "mrkdwn",
        "text": "*Customer:* [Link from Customer_Details.name]\n*Status:* [Link from Call_Status]\n*Duration:* [Link from Call_Duration]s"
      }
    }
  ]
}

Example 3: Database Insert

URL: https://api.yourapp.com/calls/insert
Data: {
  "call_id": [Link from Call_ID],
  "customer_id": [Link from Customer_Details.id],
  "agent_id": [Link from Use_Case],
  "timestamp": [Link from Call_Time],
  "duration": [Link from Call_Duration],
  "status": [Link from Call_Status],
  "transcript": [Link from Transcript]
}

Example 4: Zapier Integration

URL: https://hooks.zapier.com/hooks/catch/123456/abcdef
Data: {
  "trigger_type": "call_completed",
  "customer_email": [Link from Customer_Details.email],
  "call_summary": [Link from AI Query Agent summary]
}

Workflow Integration

Common Patterns

Pattern 1: Post-Call CRM Update

Incoming Call Node
  ↓
AI Query Agent (analyze call)
  ↓
Webhook Node (update CRM)

Pattern 2: Multi-System Integration

Voice Agent Node
  ↓
Webhook Node 1 (update CRM)
  ↓
Webhook Node 2 (log to database)
  ↓
Webhook Node 3 (notify team via Slack)

Pattern 3: Conditional Webhook

Voice Agent Node
  ↓
Smart Filter (check call success)
  ↓ (if successful)
Webhook Node (success webhook)
  ↓ (if failed)
Webhook Node (failure webhook)

Pattern 4: Data Enrichment Pipeline

Upload Data Node
  ↓
Voice Agent Node
  ↓
AI Query Agent (extract insights)
  ↓
Webhook Node (send enriched data to data warehouse)

Best Practices

Endpoint Design

Idempotency: Handle duplicate requests gracefully
Fast Response: Return 200 quickly, process asynchronously
Error Handling: Return appropriate error codes
Logging: Log all webhook requests for debugging

Security

Use HTTPS: Always use secure connections
Validate Signature: Verify hash to ensure authenticity
Check Timestamp: Prevent replay attacks
Rate Limiting: Protect against abuse
IP Whitelisting: Restrict to SubVerse IPs (if possible)

Data Handling

Validate Data: Check data format and completeness
Error Recovery: Implement retry logic for failures
Data Privacy: Handle sensitive data appropriately
Compliance: Follow data protection regulations

Monitoring

Track Success Rate: Monitor webhook delivery success
Alert on Failures: Set up alerts for failed webhooks
Log Payloads: Keep logs for troubleshooting
Performance: Monitor response times

Retry Logic

SubVerse automatically retries failed webhook requests: Retry Policy:

Attempts: Up to 3 retries
Backoff: Exponential backoff between retries
Timing: 1s, 5s, 25s delays
Status Codes: Retries on 5xx errors and timeouts

Your Endpoint Should:

Return 2xx for successful processing
Return 4xx for client errors (no retry)
Return 5xx for server errors (will retry)
Respond within 30 seconds (timeout)

Troubleshooting

Webhook Not Receiving Data

Possible Causes:

URL not publicly accessible
Firewall blocking requests
Endpoint not accepting POST
SSL certificate issues

Solutions:

Verify URL is accessible from internet
Check firewall rules
Ensure POST method is supported
Use valid SSL certificate

Authentication Failures

Possible Causes:

Incorrect hash validation
Secret mismatch
Timestamp validation too strict

Solutions:

Verify hash calculation logic
Check secret is correct
Allow reasonable timestamp window (10 min)

Timeout Errors

Possible Causes:

Endpoint processing too slow
Network latency
Database queries taking too long

Solutions:

Return 200 immediately
Process data asynchronously
Optimize database queries
Use message queue for heavy processing

Integration Examples

Salesforce

// Salesforce REST API integration
const data = {
  "FirstName": customer_name.split(' ')[0],
  "LastName": customer_name.split(' ')[1],
  "Phone": customer_phone,
  "LeadSource": "SubVerse AI Call",
  "Description": call_transcript
};

// Send to Salesforce via webhook

HubSpot

// HubSpot Contacts API
const data = {
  "properties": {
    "firstname": customer_name,
    "phone": customer_phone,
    "last_call_date": call_timestamp,
    "call_duration": call_duration,
    "call_notes": call_summary
  }
};

Google Sheets

// Google Sheets API via webhook
const data = {
  "range": "Sheet1!A:E",
  "values": [[
    call_timestamp,
    customer_name,
    customer_phone,
    call_duration,
    call_status
  ]]
};

Next Steps

AI Query Agent Node

Process data before sending

Smart Filter Node

Filter data before webhook

Webhooks Integration

Learn more about webhooks

API Reference

Workflow API documentation

Always validate the webhook signature and timestamp to ensure requests are authentic and prevent replay attacks.

Your webhook endpoint must be publicly accessible via HTTPS. Local development URLs will not work in production.

Getting Started

Trigger Nodes

Agent Nodes

Function Nodes

​Overview

​Use Cases

​Inputs

​URL (Required)

​Secret

​Data (Required)

​Additional Configuration

​Outputs

​Status_Code

​Response

​Webhook Payload Structure

​Payload Fields

​Client-Side Setup

​Webhook Endpoint Requirements

​Example Endpoint (Node.js/Express)

​Security and Validation

​Timestamp Validation

​Hash Validation (Without Secret)

​Hash Validation (With Secret)

​Configuration Examples

​Example 1: CRM Update

​Example 2: Slack Notification

​Example 3: Database Insert

​Example 4: Zapier Integration

​Workflow Integration

​Common Patterns

​Best Practices

​Endpoint Design

​Security

​Data Handling

​Monitoring

​Retry Logic

​Troubleshooting

​Webhook Not Receiving Data

​Authentication Failures

​Timeout Errors

​Integration Examples

​Salesforce

​HubSpot

​Google Sheets

​Next Steps

AI Query Agent Node

Smart Filter Node

Webhooks Integration

API Reference

Overview

Use Cases

Inputs

URL (Required)

Secret

Data (Required)

Additional Configuration

Outputs

Status_Code

Response

Webhook Payload Structure

Payload Fields

Client-Side Setup

Webhook Endpoint Requirements

Example Endpoint (Node.js/Express)

Security and Validation

Timestamp Validation

Hash Validation (Without Secret)

Hash Validation (With Secret)

Configuration Examples

Example 1: CRM Update

Example 2: Slack Notification

Example 3: Database Insert

Example 4: Zapier Integration

Workflow Integration

Common Patterns

Best Practices

Endpoint Design

Security

Data Handling

Monitoring

Retry Logic

Troubleshooting

Webhook Not Receiving Data

Authentication Failures

Timeout Errors

Integration Examples

Salesforce

HubSpot

Google Sheets

Next Steps
