Upload Data Node

​

Overview

​

Use Cases

• Bulk Campaigns: Launch outbound calling campaigns for hundreds or thousands of customers
• Data Migration: Import customer lists from existing systems
• Scheduled Campaigns: Upload data for future campaign execution
• Manual Triggers: Non-technical users can trigger workflows without API knowledge
• CSV/Excel Integration: Work with data from spreadsheets and databases

​

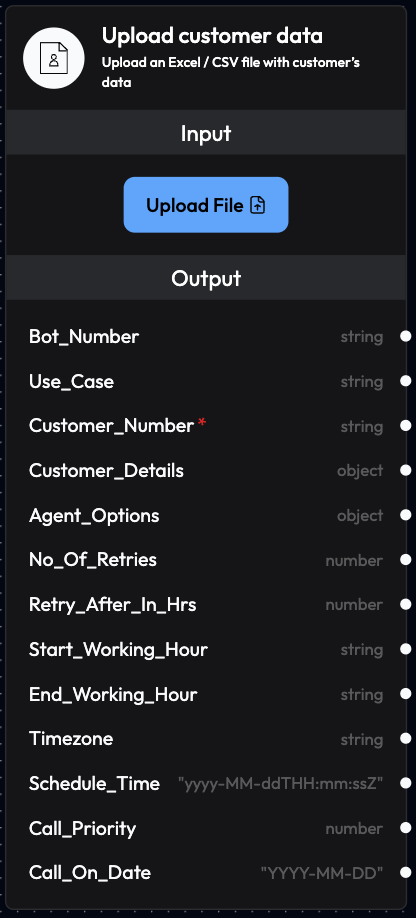

Inputs

​

File Upload

• Maximum file size: 10MB
• Supported formats: Excel (.xlsx, .xls), CSV (.csv)
• First row must contain column headers
• UTF-8 encoding recommended

• Customer_Number: Phone number with country code
• Bot_Number: Agent phone number with country code
• Use_Case: Agent name/identifier

• Customer_Name: Customer’s name
• Customer_Email: Customer’s email
• Schedule_Time: When to make the call (ISO format)
• No_Of_Retries: Number of retry attempts
• Retries_After_In_Hrs: Hours between retries
• Start_Working_Hour: Business hours start (HH:MM)
• End_Working_Hour: Business hours end (HH:MM)
• Timezone: Timezone for scheduling
• Any custom fields for personalization

Customer_Number,Bot_Number,Use_Case,Customer_Name,Customer_Email,Schedule_Time
+91xxxxxxxxxx,+91xxxxxxxxxx,order_confirmation,John Doe,[email protected],2025-12-10T10:00:00Z
+91xxxxxxxxxx,+91xxxxxxxxxx,order_confirmation,Jane Smith,[email protected],2025-12-10T10:30:00Z
+91xxxxxxxxxx,+91xxxxxxxxxx,payment_reminder,Bob Johnson,[email protected],2025-12-10T11:00:00Z

​

Outputs

​

Bot_Number

• Phone number the voice agent will use to make or receive calls
• Taken from the Bot_Number column in your file
• Format: Include country code (e.g., +91xxxxxxxxxx)

​

Use_Case

• Defines which voice agent will be used for the call
• Taken from the Use_Case column
• Must match an existing agent in your account

​

Customer_Number

• Customer’s phone number for the call
• Taken from the Customer_Number column
• Format: Include country code (e.g., +91xxxxxxxxxx)

​

Customer_Details

• Customer information compiled from all columns in the row
• Automatically converted to JSON format
• Includes all custom columns you’ve added

{
  "name": "John Doe",
  "email": "[email protected]",
  "order_id": "ORD-12345",
  "product": "Premium Plan"
}

​

Agent_Options

• Override default agent settings for specific calls
• Can be specified in the file or left empty
• Allows per-call customization

​

No_Of_Retries

• Number of retry attempts if the call fails
• Taken from the No_Of_Retries column (if provided)
• Default: 0 (no retries)

​

Retries_After_In_Hrs

• Time interval between retry attempts (in hours)
• Taken from the Retries_After_In_Hrs column (if provided)
• Example: 2 (retry after 2 hours)

​

Start_Working_Hour

• Start of business hours in 24-hour format (HH:MM)
• Taken from the Start_Working_Hour column (if provided)
• Example: “09:00”

​

End_Working_Hour

• End of business hours in 24-hour format (HH:MM)
• Taken from the End_Working_Hour column (if provided)
• Example: “18:00”

​

Timezone

• Timezone for working hours calculation
• Taken from the Timezone column (if provided)
• Default: Asia/Kolkata

​

How to Use

​

Step 1: Prepare Your Data File

1. Create a spreadsheet with your customer data
2. Ensure all required columns are present
3. Validate phone numbers include country codes
4. Format dates in ISO 8601 format
5. Save as CSV or Excel file

​

Step 2: Upload to SubVerse

1. Navigate to your workflow in the dashboard
2. Add or click on the Upload Data Node
3. Click the upload button
4. Select your prepared file
5. Review the preview of parsed data
6. Confirm and upload

​

Step 3: Workflow Execution

• Each row in your file triggers the workflow
• Calls are scheduled according to Schedule_Time column
• Working hours and retry logic are applied automatically
• Monitor progress in Call History section

​

File Format Examples

​

Basic Campaign File

Customer_Number,Bot_Number,Use_Case,Customer_Name
+919876543210,+919898989898,sales_call,John Doe
+919876543211,+919898989898,sales_call,Jane Smith
+919876543212,+919898989898,sales_call,Bob Johnson

​

Advanced Campaign with Scheduling

Customer_Number,Bot_Number,Use_Case,Customer_Name,Schedule_Time,No_Of_Retries,Timezone
+919876543210,+919898989898,appointment_reminder,John Doe,2025-12-10T09:00:00Z,2,Asia/Kolkata
+919876543211,+919898989898,appointment_reminder,Jane Smith,2025-12-10T10:00:00Z,2,Asia/Kolkata

​

E-commerce Order Confirmation

Customer_Number,Bot_Number,Use_Case,Customer_Name,Order_ID,Order_Amount,Delivery_Date
+919876543210,+919898989898,order_confirmation,John Doe,ORD-001,₹2499,2025-12-15
+919876543211,+919898989898,order_confirmation,Jane Smith,ORD-002,₹3999,2025-12-16

​

Best Practices

​

Data Preparation

• Validate Phone Numbers: Ensure all numbers include country codes
• Clean Data: Remove duplicates and invalid entries
• Test Small: Upload a small test file first (5-10 rows)
• Consistent Formatting: Use the same format for all rows

​

File Organization

• Clear Headers: Use descriptive column names
• Logical Order: Arrange columns in a logical sequence
• Documentation: Keep a template file for future uploads
• Backup: Save original files before uploading

​

Scheduling

• Spread Out Calls: Don’t schedule all calls at the same time
• Respect Time Zones: Consider customer locations
• Business Hours: Use working hour constraints
• Retry Logic: Set appropriate retry parameters

​

Performance

• Batch Size: Upload files with 100-1000 rows for optimal performance
• Large Campaigns: Split very large campaigns into multiple files
• Monitor Progress: Check Call History regularly
• Error Handling: Review failed calls and retry if needed

​

Common Issues and Solutions

​

Phone Number Format Errors

• Always include country code (e.g., +91 for India)
• Remove spaces and special characters
• Use format: +[country code][number]

​

Missing Required Columns

• Ensure Customer_Number, Bot_Number, and Use_Case columns exist
• Check spelling of column names
• Review file preview before confirming upload

​

Encoding Issues

• Save file with UTF-8 encoding
• Avoid special characters in critical fields
• Test with a small sample first

​

Schedule Time Format

• Use ISO 8601 format: YYYY-MM-DDTHH:MM:SSZ
• Include timezone in the format or use Timezone column
• Validate dates are in the future

​

Monitoring Uploaded Campaigns

1. View Progress: Check Call History for execution status
2. Track Success Rate: Monitor completed vs failed calls
3. Review Transcripts: Listen to sample calls for quality
4. Analyze Results: Export data for reporting
5. Optimize: Adjust agent settings based on performance

​

Comparison: Upload Data vs Call API

​

Next Steps
