HTTP Request

The HTTP Request node makes HTTP calls to any external API or web endpoint. It supports all standard HTTP methods, custom headers, query parameters, multiple body formats, and a wide range of authentication types.

Use Cases

Call a REST API that does not have a dedicated AgentVerse integration
Interact with internal services or microservices
Fetch data from a third-party API and pass it to downstream nodes
Trigger webhooks on external platforms

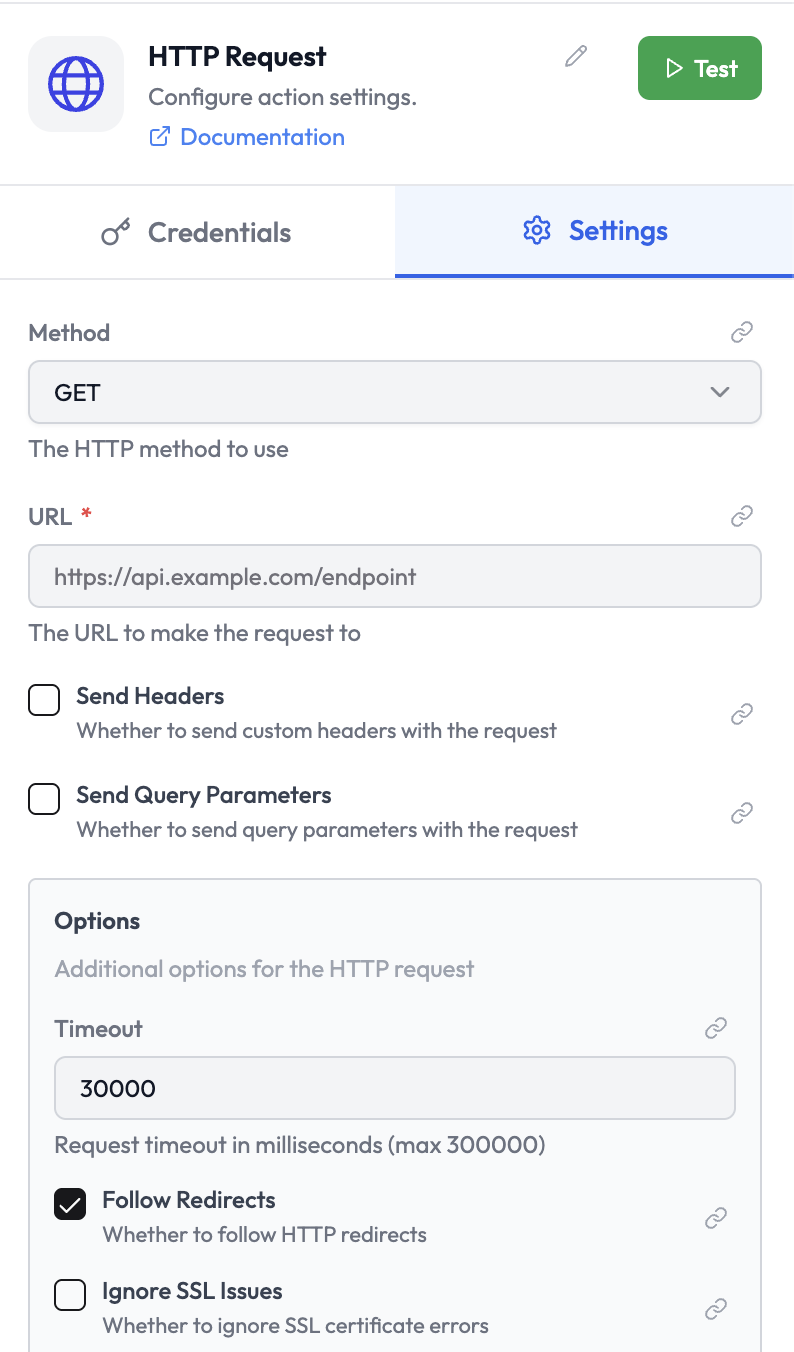

Node Reference

Parameters

Parameter	Type	Required	Description
Method	Select	Yes	HTTP method: `GET`, `POST`, `PUT`, `PATCH`, `DELETE`, `HEAD`, `OPTIONS`
URL	String	Yes	The full URL of the endpoint
Send Headers	Boolean	No	Enable to add custom request headers
Send Query Parameters	Boolean	No	Enable to add query string parameters to the URL
Body Type	Select	No	Format of the request body (for POST/PUT/PATCH)
Body	String / JSON / Form	No	The request body payload
Options — Timeout	Number	No	Request timeout in milliseconds (default: `30000`, max: `300000`)
Options — Follow Redirects	Boolean	No	Whether to follow HTTP redirects (default: enabled)
Options — Ignore SSL Issues	Boolean	No	Skip SSL certificate verification (use with caution)
Options — Response Format	Select	No	How to parse the response: `autodetect`, `json`, `text`, or `base64` (default: `autodetect`)
Options — Full Response	Boolean	No	Return status code, headers, and body instead of just the body (default: disabled)
Options — Ignore Response Code	Boolean	No	Don’t throw on 4xx/5xx — handle the error response yourself (default: disabled)

Body Types

Type	Description
`JSON`	Send body as `application/json`
`Form Data (URL Encoded)`	Send body as `application/x-www-form-urlencoded`
`Form Data (Multipart)`	Send body as `multipart/form-data` (for file uploads)
`Raw / Binary`	Send raw string or binary body

Response Format

Use Response Format to control how the node parses the API response:

Format	When to use
`Autodetect`	Let the node choose based on the `Content-Type` header
`JSON`	Force parsing as JSON
`Text`	Return the response as a plain string
`Base64`	Return binary data (images, PDFs, audio) as a Base64 string

Tip: Choose Base64 when you need to pass binary files to downstream nodes such as Send Email attachments or file upload actions.

Output Data

By default, the node returns the parsed response body:

{
  "users": [
    { "id": 1, "name": "Alice" },
    { "id": 2, "name": "Bob" }
  ]
}

When Full Response is enabled:

{
  "statusCode": 200,
  "statusMessage": "OK",
  "headers": {
    "content-type": "application/json"
  },
  "body": { ... }
}

When Response Format is set to Base64:

{
  "data": "iVBORw0KGgoAAAANSUhEUgAAAA..."
}

Reference fields in downstream nodes:

{{ httpRequest.users[0].name }}
{{ httpRequest.statusCode }}

Pagination

For APIs that return paginated results, enable Pagination under Options:

Setting	Description
Pagination Type	`Page Number`, `Offset`, or `Cursor-Based`
Max Items	Stop paginating after this many total items

Respond to Webhook — Return an HTTP response from an orchestration
Conditions — Branch based on HTTP response status or body
Send Email — Attach binary data fetched via HTTP Request

Combine HTTP Request (Base64 response format) with Send Email to fetch a document from an API and email it as an attachment.
