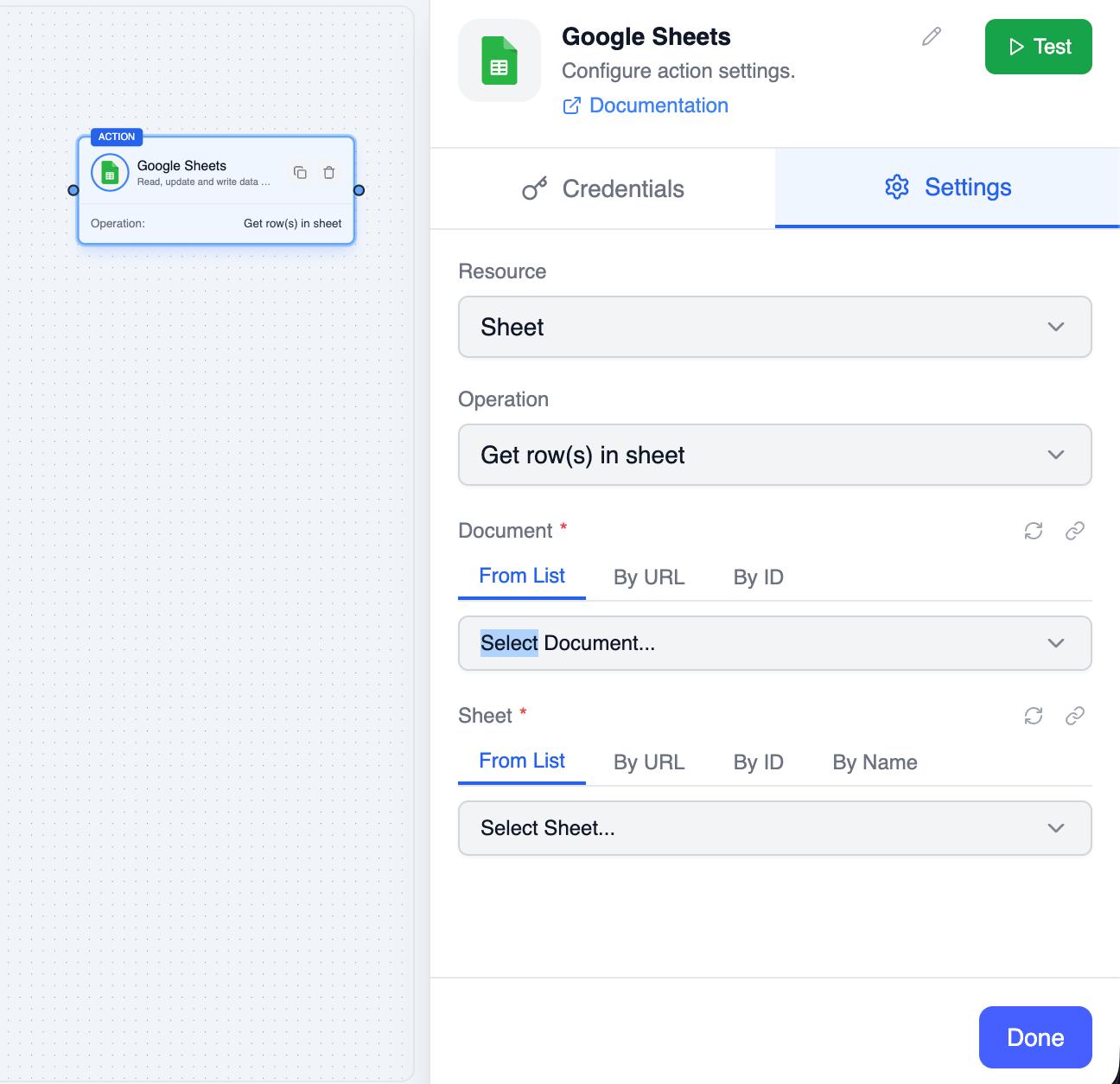

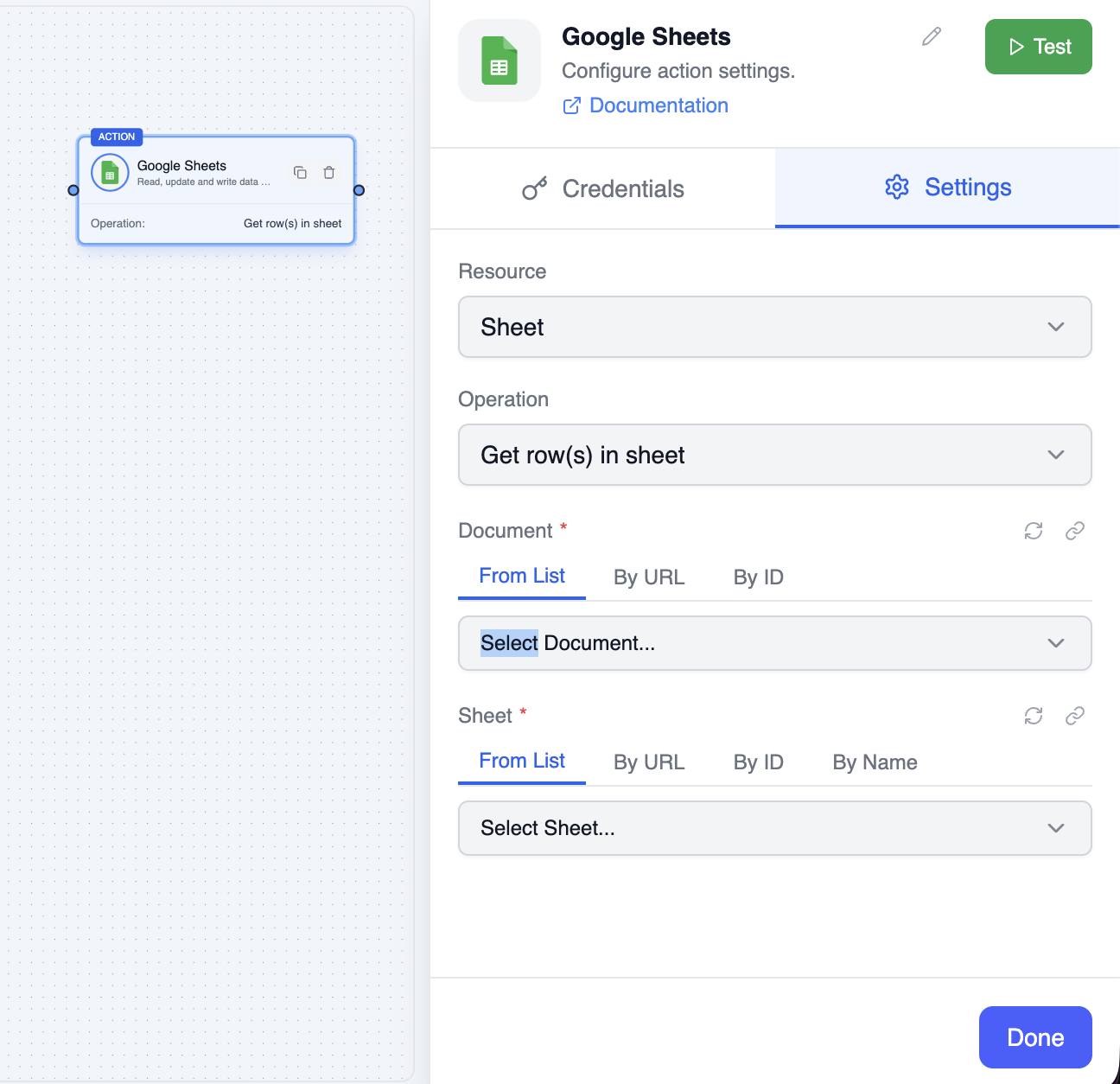

Google Sheets

The Google Sheets node lets you read and write data in Google Spreadsheets — read ranges, append rows, update cells, upsert rows, clear values, delete rows or columns, create and delete sheets, and create and delete entire spreadsheets.

Credentials

Three credential types are supported:

Type	Description
Google Sheets Service Account	Server-to-server authentication using a service account JSON key — works with private sheets after sharing them with the service account email
Google Sheets OAuth2 API	Sign in with your own Google account — accesses any sheet your account can open, no manual sharing required
Google Sheets API Key	Read-only access to publicly shared sheets — no write operations

To create a credential:

Go to Settings → Credentials → New Credential
Select the desired Google Sheets credential type
Complete the authentication flow

The API Key credential only works for sheets shared as Anyone with the link and supports read operations only. For private sheets or any write operation, use Service Account or OAuth2 API.

Operations

Values

Operation	Description
`Read Rows`	Read values from a range — returns a 2D array of rows
`Append Rows`	Add rows after the last row with data in a sheet
`Update Rows`	Overwrite cells at a specific range
`Append or Update Rows`	Upsert rows by a lookup column — update matching rows or append new ones
`Clear Range`	Remove values from a range while preserving formatting
`Delete Rows or Columns`	Remove rows or columns by index — remaining rows/columns shift to fill the gap

Spreadsheet

Operation	Description
`Create Sheet`	Add a new tab to an existing spreadsheet
`Delete Sheet`	Remove a tab from a spreadsheet by its numeric sheet ID
`Create Spreadsheet`	Create a brand new spreadsheet owned by the credential account
`Delete Spreadsheet`	Move a spreadsheet to trash via the Google Drive API

Parameters: Read Rows

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID from the URL: `/spreadsheets/d/{id}/`
Range	String	Yes	A1 notation range — e.g. `Sheet1!A1:D10` or just `Sheet1`
Value Render Option	Select	No	`FORMATTED_VALUE` (default), `FORMULA`, or `UNFORMATTED_VALUE`

Parameters: Append Rows

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID
Range	String	Yes	Sheet name or range — only the sheet name matters for append (e.g. `Sheet1`)
Rows	Array	Yes	Array of rows to append. Each row is an array of cell values
Value Input Option	Select	No	`RAW` (as-is) or `USER_ENTERED` (parsed). Default `USER_ENTERED`

Parameters: Update Rows

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID
Range	String	Yes	A1 notation range to overwrite — e.g. `Sheet1!A2:C2`
Rows	Array	Yes	Array of rows. Dimensions must match the range
Value Input Option	Select	No	`RAW` or `USER_ENTERED`. Default `USER_ENTERED`

Parameters: Append or Update Rows

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID
Range	String	Yes	A1 notation range to search and write within (e.g. `Sheet1!A1:D`)
Rows	Array	Yes	Array of rows to upsert. Each row is an array of cell values
Lookup Column Index	Number	Yes	0-based column index used to match rows (0 = column A)
Value Input Option	Select	No	`RAW` or `USER_ENTERED`. Default `USER_ENTERED`

Parameters: Clear Range

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID
Range	String	Yes	A1 notation range to clear — e.g. `Sheet1!A1:D10`

Parameters: Delete Rows or Columns

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID
Dimension	Select	Yes	`ROWS` or `COLUMNS`
Ranges	Collection	Yes	Array of ranges to delete — at least one required
Ranges → Sheet ID	Number	Yes	Numeric sheet (tab) ID
Ranges → Start Index	Number	Yes	0-based index of first row/column to delete (row 1 = index 0)
Ranges → End Index	Number	Yes	0-based index after the last row/column to delete (must be > start)

Parameters: Create Sheet

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet to add the sheet to
Title	String	Yes	Title for the new tab — must be non-empty and unique
Row Count	Number	No	Number of rows. Default `1000`
Column Count	Number	No	Number of columns. Default `26`

Parameters: Delete Sheet

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID
Sheet ID	Number	Yes	Numeric ID of the sheet (tab) to delete

Parameters: Create Spreadsheet

Parameter	Type	Required	Description
Title	String	Yes	Spreadsheet title — must be non-empty
Locale	String	No	Spreadsheet locale (e.g. `en_US`). Default `en_US`

Parameters: Delete Spreadsheet

Parameter	Type	Required	Description
Spreadsheet ID	String	Yes	Spreadsheet ID to delete (moved to Google Drive trash)

Output Data

A read result from Read Rows:

{
  "range": "Sheet1!A1:D3",
  "majorDimension": "ROWS",
  "values": [
    ["Name", "Email", "Phone", "Status"],
    ["John Doe", "[email protected]", "1234567890", "Active"],
    ["Jane Smith", "[email protected]", "0987654321", "Inactive"]
  ]
}

Reference cells in downstream nodes:

{{ googleSheets.values[0][0] }}
{{ googleSheets.values[1][1] }}

An append or update result:

{
  "spreadsheetId": "spreadsheet-id-123",
  "updates": {
    "updatedRange": "Sheet1!A4:C4",
    "updatedRows": 1,
    "updatedCells": 3
  }
}

An append-or-update result:

{
  "spreadsheetId": "spreadsheet-id-123",
  "appendResult": {
    "updatedRange": "Sheet1!A4:C4",
    "updatedRows": 1,
    "updatedCells": 3
  },
  "updateResults": [
    {
      "updatedRange": "Sheet1!A2:C2",
      "updatedRows": 1,
      "updatedCells": 3
    }
  ]
}

A create sheet result:

{
  "spreadsheetId": "spreadsheet-id-123",
  "sheetId": 1234567890,
  "title": "February 2025"
}

A create spreadsheet result:

{
  "spreadsheetId": "1aB2cD3eF4gH5iJ6kL7mN8oP9qR0sT1uV2wX3yZ4",
  "spreadsheetUrl": "https://docs.google.com/spreadsheets/d/1aB2cD3eF4gH5iJ6kL7mN8oP9qR0sT1uV2wX3yZ4/edit"
}

A clear, delete sheet, delete rows/columns, or delete spreadsheet result:

{
  "spreadsheetId": "spreadsheet-id-123",
  "deleted": true
}

A1 Notation Examples

Range	Description
`Sheet1`	Entire sheet named “Sheet1”
`Sheet1!A1:D10`	Cells A1 through D10 on “Sheet1”
`Sheet1!A:D`	All rows in columns A through D
`Sheet1!A2:A`	All rows in column A starting from row 2

For Loop — Iterate over rows returned by Read Rows
Conditions — Branch based on cell values
HTTP Request — Send row data to an external API
