Send Email

The Send Email node sends emails through an SMTP server. Use it for transactional messages, alerts, reports, and follow-ups inside an orchestration.

Credentials

This node requires an Email (SMTP / IMAP) credential. To create a credential:

Go to Settings → Credentials → New Credential
Select Email (SMTP / IMAP)
Enter your SMTP username, password, host, port, and encryption

Use Cases

Order Confirmations: Email receipts and invoices after a purchase
Appointment Reminders: Send appointment details to customers
Status Alerts: Notify internal teams or customers when events occur
Reports: Email generated summaries or documents
Follow-ups: Send post-call or post-chat summaries

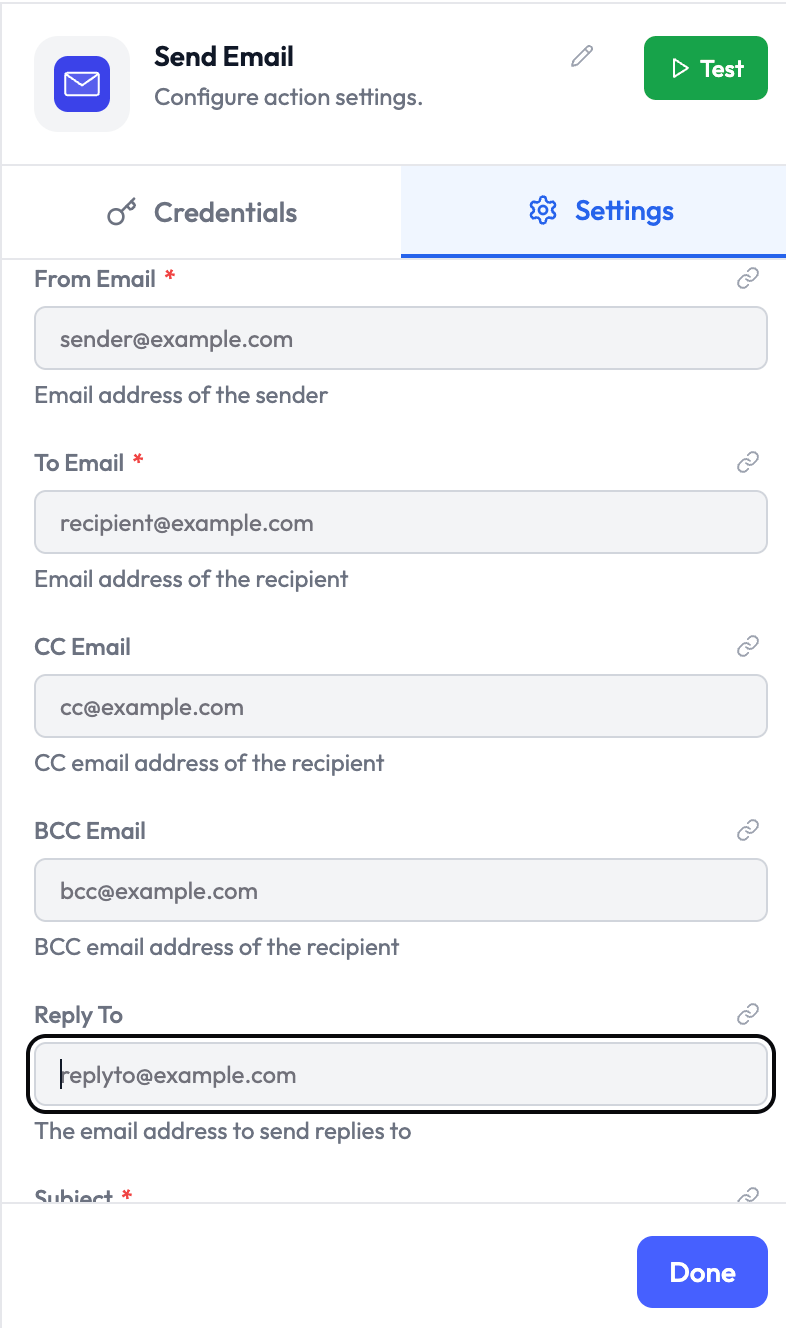

Parameters

Parameter	Type	Required	Description
Credential	Credential	Yes	Select an Email (SMTP / IMAP) credential
From Email	String	No	Sender address in `[email protected]` or `Name <[email protected]>` format. Defaults to the credential username when omitted
To Email	String	Yes	Recipient email address
CC Email	String	No	CC recipient address
BCC Email	String	No	BCC recipient address
Reply To	String	No	Reply-To address
Subject	String	Yes	Email subject line
Email Format	Select	Yes	`HTML`, `Text`, or `Both` (default: `HTML`)
Text	String	No	Plain text body. Shown when Email Format is `Text` or `Both`
HTML	String	No	HTML body. Shown when Email Format is `HTML` or `Both`. Supports the built-in HTML editor
Attachments	Collection	No	Files to attach by public link or direct upload. Each attachment requires a file URL; the file name is optional
Ignore SSL Issues (Insecure)	Boolean	No	Bypass SSL certificate validation (default: disabled)
Append Attribution	Boolean	No	Add a “Sent via SubverseAI” footer (default: disabled)

Email Format

Format	Behavior
`HTML`	Sends only the HTML body
`Text`	Sends only the plain text body
`Both`	Sends both HTML and plain text; the recipient’s client decides which to display

Attachments

Each attachment supports:

Field	Required	Description
Attachment Type	Yes	Choose `Link` for an existing URL or `Upload File` to upload a file directly
File URL	Yes	Public URL for link mode. In upload mode, this value is set automatically after the file is uploaded
File Name	No	Name shown in the email, e.g. `invoice.pdf`. When omitted, the node derives it from the URL

Uploaded files stored by SubverseAI are resolved to a temporary signed URL when the email is sent.

Output Data

A successful send returns:

{
  "messageId": "<[email protected]>",
  "response": "250 OK",
  "accepted": ["[email protected]"],
  "rejected": []
}

Reference in downstream nodes:

{{ sendEmail.messageId }}
{{ sendEmail.accepted }}
{{ sendEmail.rejected }}

Common Patterns

Attach a File by URL

HTTP Request or upstream node (returns a file URL)
  ↓
Send Email (Attachment Type: Link)

Map the attachment File URL to the upstream URL. You can leave File Name blank to derive it automatically from the URL.

Upload and Attach a File

Choose Upload File in the attachment, then drag and drop or select the file. The uploaded file URL is populated automatically.

Send AI-Generated Follow-up

AI Agent Node (generate email subject and body)
  ↓
Send Email (subject and body linked from AI Agent output)

HTTP Request — Fetch files or data to include in an email
SubVerse Agents — Hand off email conversations to an AI agent
Conditions — Branch based on send success or failure

Link the Subject, HTML, and Text fields from an upstream AI Agent node to generate personalized, context-aware emails.

For Gmail and other providers with app-specific passwords, use the app password in the credential, not your regular account password.
